Manufactured/Badged by:
Other Maker
*

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Lathe, Wood
Machine Size:	23" by 63"
Submitted By:	John Iles

Machine Specifications
Description/Model:	homebuilt lathe
Date of Manufacturer:	aprox 1980
Serial Number:
Last Updated	12/24/2012 9:46:11 PM

Comments:

This was built by the late Larry Reyes from Eugene Oregon, an accomplished welder for my Father in Law and has been used extensively by him to make bowls. He was a logger for many years and cut all of his own working stock. He is now 98 and is no longer able to see well enough to use it so I inherited it. It is very heavy, 300+pounds. The motor is a Direct Current Dayton 1 1/2 HP single phase with electronic speed control.
The stand is made from a fir laminated beam and is extremely stable.
I repainted recently.

Photo 1:

Comments: headstock note chip collector
Source:

Direct Link
IMG Code

Photo 2:

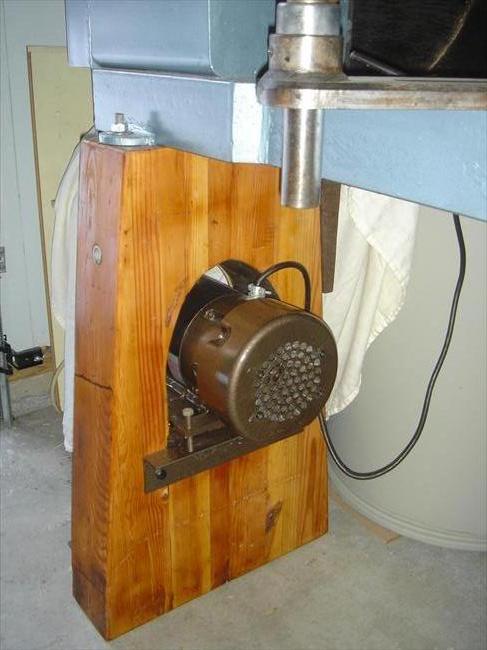

Comments: Dayton DC motor
Source:

Direct Link
IMG Code

Photo 3:

Comments: entire lathe
Source:

Direct Link
IMG Code

Photo 4:

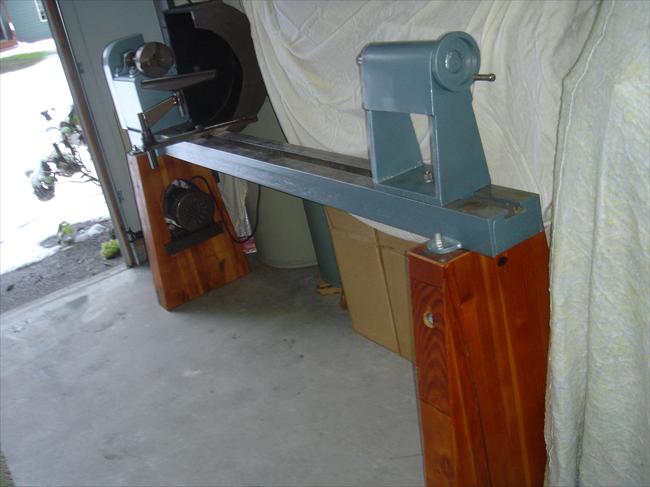

Comments: from tailstock end
Source:

Direct Link
IMG Code

Photo 5:

Comments: headstock showing speed controller
Source:

Direct Link
IMG Code

Photo 6:

Comments: drive end
Source: sony DSC-T1 by me
