Photo Index - Unknown Manufacturer - Unknown Lathe

Machinery Photo Index

Manufactured/Badged by:
Unknown Manufacturer
*

True Manufacturer:
Unknown Manufacturer, *

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Lathe, Wood
Machine Size:
Submitted By:	Jeremy Charbonneau

Machine Specifications
Description/Model:	Unknown Lathe
Date of Manufacturer:	Unknown
Serial Number:	Unkown
Last Updated	10/25/2012 9:45:38 AM

Comments:

This lathe was used in an old fishery located on Lake Erie. I salvaged it from a scrap pile and am attempting to restore it to a working condition. There are no markings on any of the components. It was belt driven, however the wooden pulleys were almost rotten beyond recognition when I found it. Will post more photos when I build a bed and mount a motor to it.

Photo 1:

Comments: All parts together
Source: Taken by uploader

Direct Link
IMG Code

Photo 2:

Comments: Tool rest
Source: Taken by uploader

Direct Link
IMG Code

Photo 3:

Comments: Headstock 1
Source: Taken by uploader

Direct Link
IMG Code

Photo 4:

Comments: Headstock 2
Source: Taken by uploader

Direct Link
IMG Code

Photo 5:

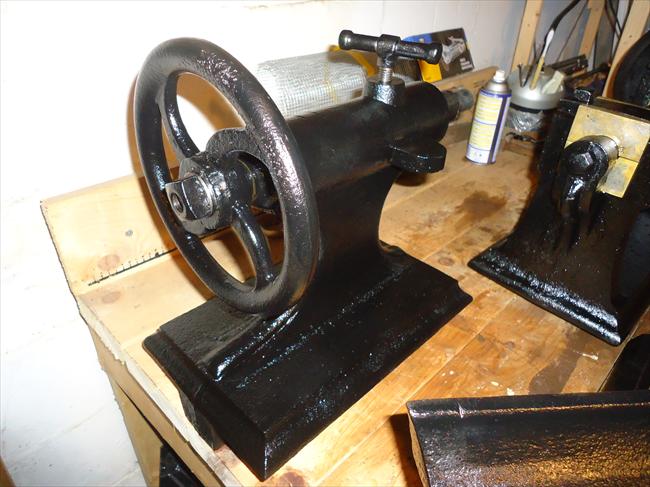

Comments: Tailstock 1
Source: Taken by uploader

Direct Link
IMG Code

Photo 6:

Comments: Tailstock 2
Source: Taken by uploader

Direct Link
IMG Code
