Manufactured/Badged by:
American Saw Mill Machinery Co.
New York, NY; Hackettstown, NJ.

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Radial Arm Saw
Machine Size:	16"
Submitted By:	A F

Machine Specifications
Description/Model:	Uni-Point
Date of Manufacturer:	1948
Serial Number:	48024
Last Updated	10/14/2012 7:28:22 PM

Comments:

More pictures of this machine can be found at http://www.owwm.net

Motor Horsepower 5hp
Saw Diameter 16"
Saw Hole 1"
Dado* Largest Width on Standard Mandrel 1-9/16"
Dado* Largest Width on 1-3/8" Standard Mandrel 3"
Maximum Depth of Cut (16" Saw) 4-1/2"
Cross Cut Capacity-Guide Fence Regular Position 17-1/2"
Cross Cut Capacity-Guide Fence Rear Position 25"
Ripping Capacity-Between Saw and Regular Guide Fence 23-1/2"
Ripping Capacity-with Guide Fence Moved to Rear 31"
Maximum 45 degree Miter, Guide Fence Regular Position 4" x 12-1/2"
Moved to Rear 4" x 14-1/2"
Maximum 70 degree Miter, Guide Fence Regular Position 4" x 6"
Moved to Rear 4" x 8-1/2"
Maximum Compound 45 degree Miter 3" x 12-1/2"
Motor Raises to Center of Arbor to Table Top, Max 10"
Motor Lowers, Center of Arbor to Table Top, Min 3-5/8"
Size of Table 25" x 48"
Height of Table 32"
Angle Capacity Saw Tilts to Left 45 degrees
Saw Pivot to Right 70 degrees
Saw Pivot to Left 45 degrees
Floor Space, Overall 48" x 60"

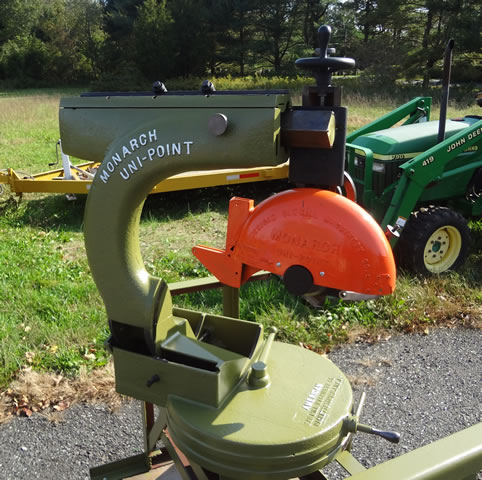

Photo 1:

Comments:
Source:

Direct Link
IMG Code

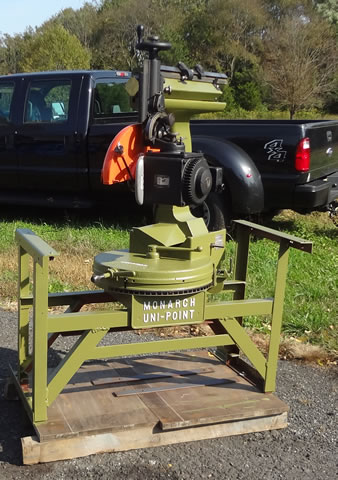

Photo 2:
