Photo Index - Onsrud Machine Works, Inc. - W113-E direct drive

Machinery Photo Index

Manufactured/Badged by:
Onsrud Machine Works, Inc.
Niles, IL; Chicago, IL; Wheeling, IL

True Manufacturer:
Onsrud Machine Works, Inc., Niles, IL; Chicago, IL; Wheeling, IL

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Overarm Router
Machine Size:	25" throat
Submitted By:	Bill Kerns

Machine Specifications
Description/Model:	W113-E direct drive
Date of Manufacturer:	early 1950s ?
Serial Number:	10188
Last Updated	4/30/2012 2:06:44 PM

Comments:

This machine is pretty unique and rare, I had to have it. Came out of Boeing/Douglas, I bought it from the guy that got it from auction. It is marked 440v only, but I reconnected it for 220v. It has a high frequency directed drive 4/2.7 hp motor. The frequency converter that came with it puts out 360/240 hz. which gives speeds of 21,000 and 14,000 rpm. It's in real nice shape and everything works with no broken parts. I called ATS the company that supports Onsrud machines and they have never heard of the model. I'm planning on mounting the converter on the wall behind the machine, but it probably weighs 500 lb so I'll have to be careful. thanks for looking.

Photo 1:

Comments: front view converter behind
Source: me

Direct Link
IMG Code

Photo 2:

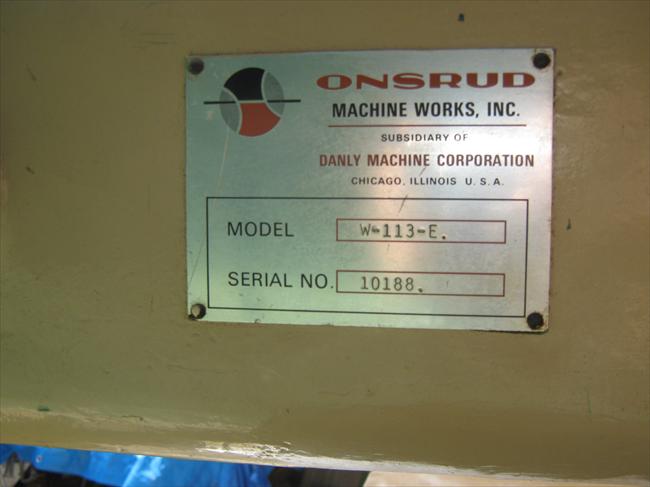

Comments: newer nameplate
Source: me

Direct Link
IMG Code

Photo 3:

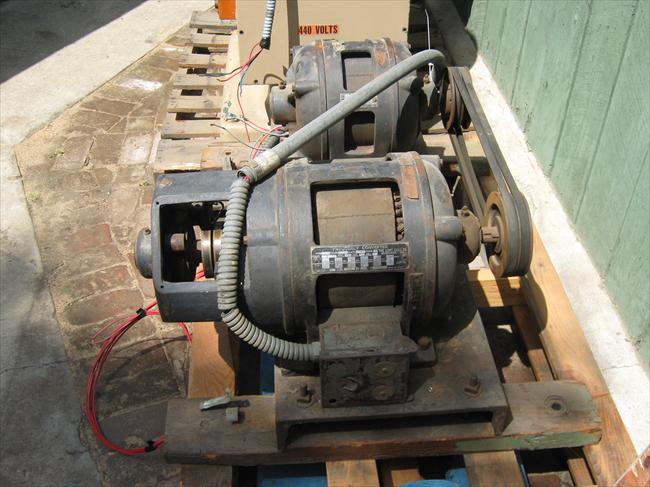

Comments: wound rotor motor/ generator
Source: me

Direct Link
IMG Code

Photo 4:

Comments: motor nameplate
Source: me

Direct Link
IMG Code

Photo 5:

Comments: rt side view, hi/ lo speed switch
Source: me

Direct Link
IMG Code

Photo 6:

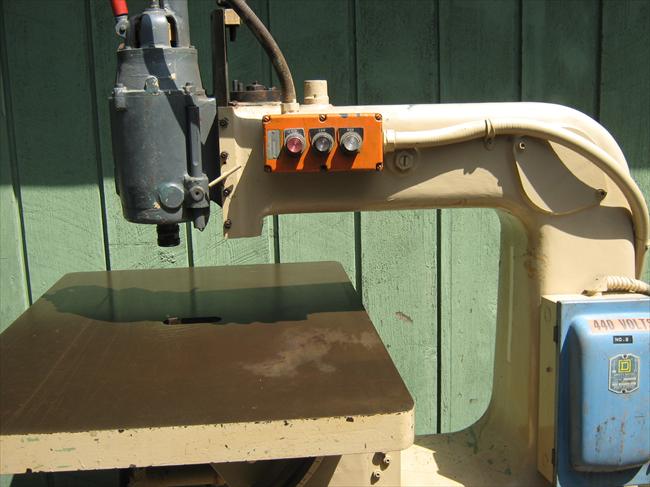

Comments: control panel w/ converter start switch
