Photo Index - Winterhoff Tool & Machine Co. - No.0 MOTOR DRIVEN BENCH DRILL

Machinery Photo Index

Manufactured/Badged by:
Winterhoff Tool & Machine Co.
Elkhart, IN

Machine Specifications
Machine Class:	Wood Working Machinery & Metal Working Machinery
Machine Type:	Drill Press
Machine Size:	10"
Submitted By:	Joe Strefezza

Machine Specifications
Description/Model:	No.0 MOTOR DRIVEN BENCH DRILL
Date of Manufacturer:	1920's
Serial Number:
Last Updated	6/23/2011 9:53:04 PM

Comments:

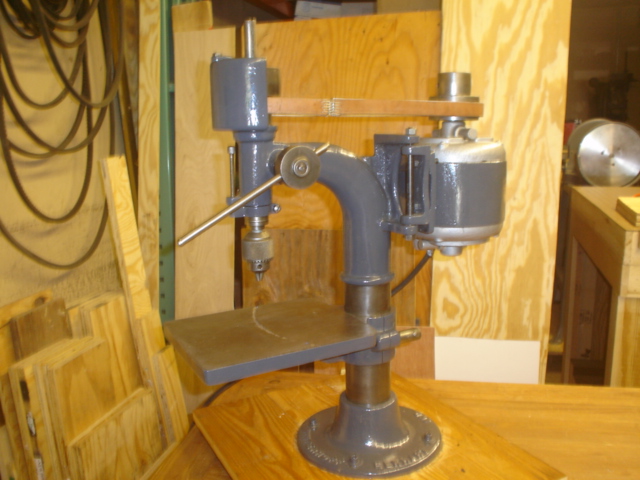

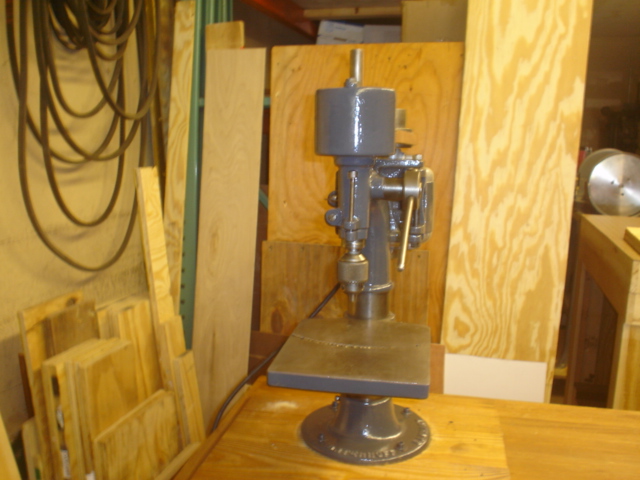

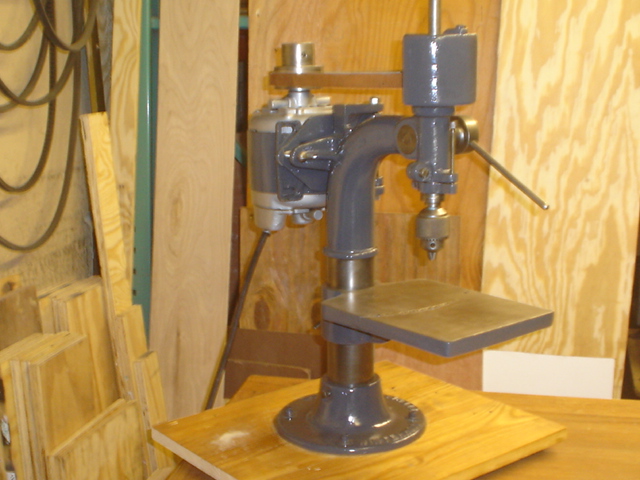

THIS IS THE WINTERHOFF MODEL No.0 MOTOR DRIVEN BENCH DRILL
MACHINE SPECIFICATIONS:
OVERALL HEIGHT ..... 25.5"

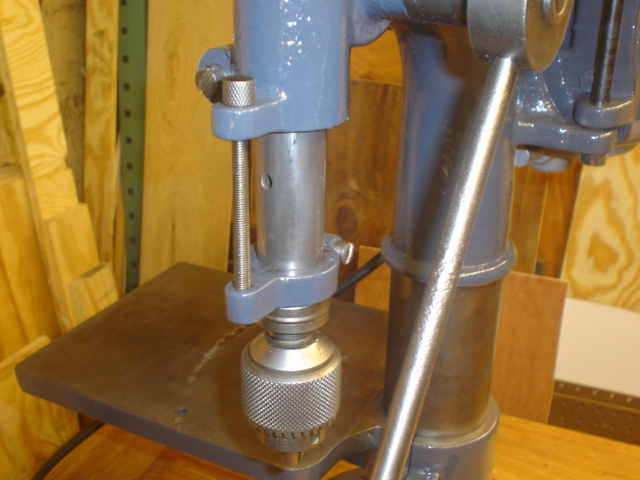

CHUCK ..... 3/8" CAPACITY
QUILL TRAVEL ..... 2"
CENTER OF CHUCK TO POST DISTANCE ..... 5"
THE DRILL PRESS IS POWERED BY A SINGLE PHASE 220 VOLT AC 1/4 HP ROBBINS & MYERS MOTOR WHICH OPERATES AT 1750 RPM

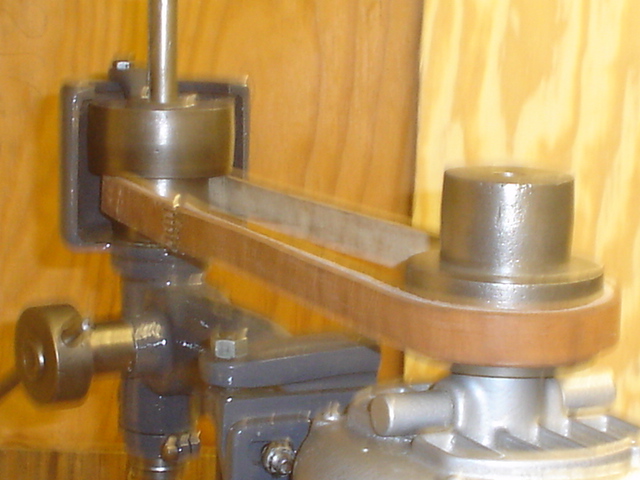

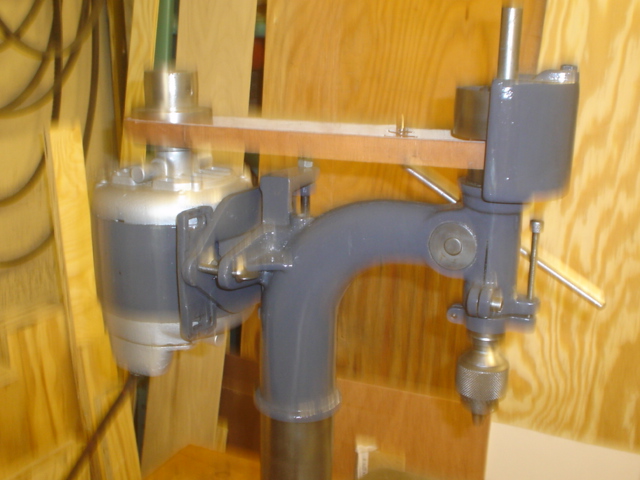

POWER IS TRANSMITTED FROM THE MOTOR TO THE SPINDLE BY A 1" WIDE LEATHER FLAT BELT ON A PAIR OF 2 STEP FLAT BELT PULLEYS GIVING THE OPTION OF 2 SPEEDS
THE TENSION OF THE FLAT BELT IS SLACKENED AND TIGHTENED BY LOOSENING OR TIGHTENING A THUMB SCREW ON THE MOTOR MOUNT DEVICE
THIS RESTORATION WAS DONE BY AMERICAN MACHINE OF SHELBY NC
