Photo Index - General Hardware Co. - CB-56G

Machinery Photo Index

Manufactured/Badged by:
General Hardware Co.
Milwaukee, WI

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Grinder, Bench
Machine Size:	6" x 1" x ½"
Submitted By:	Brian Kachadurian

Machine Specifications
Description/Model:	CB-56G
Date of Manufacturer:	Est 1960s
Serial Number:	none
Last Updated	8/28/2017 1:15:10 PM

Comments:

>>HISTORY<<
Grinder purchased from OWWMer Scott Golden at ArnFest 2010.
Motor obtained from Bob Holcombe in the ArnFest 2009 timeframe.

>>MACHINE<<
General Mfg belt driven bench grinder, with 2" pulley.
Motor: Westinghouse Handy Craft 1/3hp, 1725rpm, 6.3A, split phase, bronze bearing, with Western Auto decal.
Portable mounting board idea--Bob Holcombe's Atlas Grinder-Hone.
Motor is configured with a 4" pulley, giving the grinder a speed of 3450rpm.
Grinding wheels are ½" wide. With 1" wide wheels, the owners manual recommends a 3" motor pulley, yielding a speed of ~2600rpm.
The grinder was originally equipped with ¼-20 wing nuts on the guards and tool rests. I could not adequately tighten the wing nuts by hand so I switched to regular hex nuts. The wrench tightened hex nuts provide solid clamping force for both the guards and tool rests.

>>UPDATE-2012<<
This grinder was given to my wife's friend who had a need for a small portable machine.

Photo 1:

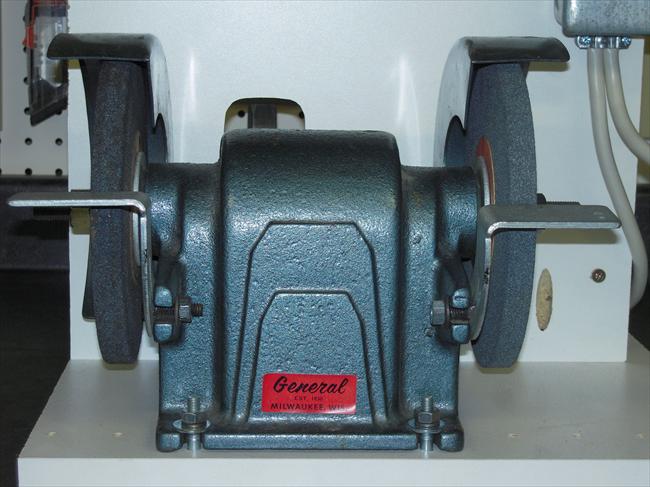

Comments: Full front view
Source: Nikon CoolPix

Direct Link
IMG Code

Photo 2:

Comments: Right side
Source: Nikon CoolPix

Direct Link
IMG Code

Photo 3:

Comments: Left side
Source: Nikon CoolPix

Direct Link
IMG Code

Photo 4:

Comments: Top view with belt configuration
Source: Nikon CoolPix

Direct Link
IMG Code

Photo 5:

Comments: Grinder close-up
Source: Nikon CoolPix

Direct Link
IMG Code

Photo 6:

Comments: Motor
Source: Nikon CoolPix

Direct Link
IMG Code
