Photo Index - H. B. Smith Machine Co. - Four-head molder

Machinery Photo Index

Manufactured/Badged by:
H. B. Smith Machine Co.
Lowell, MA; Smithville, NJ

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Molder
Machine Size:
Submitted By:	Stuart Kern

Machine Specifications
Description/Model:	Four-head molder
Date of Manufacturer:	1906
Serial Number:
Last Updated	1/7/2005 8:36:10 PM

Comments:

Four-head molder retrieved in January, 2004 from a millworks that was retooling. The machine has a fairly simple cast iron frame that supports a rather complex mechanism. Just about anything that could be adjustable, is.

This machine is not yellow. It's covered with dust.

In the summer of 2004, the machine travelled to Iowa to join OWWMer Mike Burian's collection.

Photo 1:

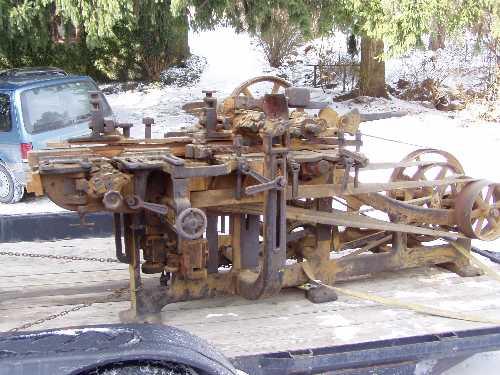

Comments: Working side of molder
Source: Stuart Kern

Direct Link
IMG Code

Photo 2:

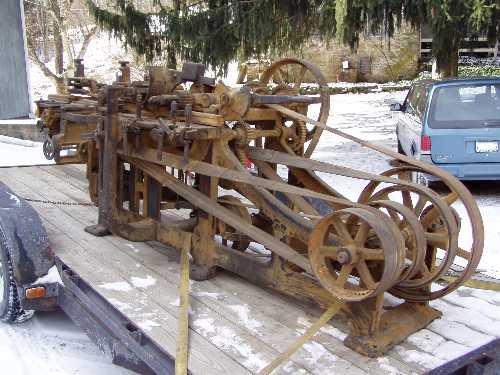

Comments: Power side. Power is direct drive to the large wheel.
Source: Stuart Kern

Direct Link
IMG Code

Photo 3:

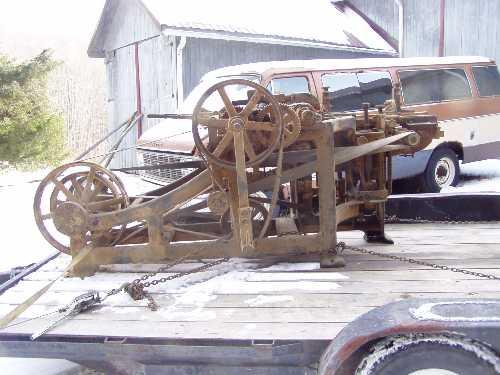

Comments: 3/4 view, from feed end
Source: Stuart Kern

Direct Link
IMG Code
