Photo Index - South Bend Lathe Works - Heavy 10

Machinery Photo Index

Manufactured/Badged by:
South Bend Lathe Works
South Bend, IN

True Manufacturer:
South Bend Lathe Works, South Bend, IN

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	10" swing x 3-ft bed
Submitted By:	Jim McCarthy

Machine Specifications
Description/Model:	Heavy 10
Date of Manufacturer:	1940
Serial Number:	99405
Last Updated	9/2/2021 4:01:28 PM

Comments:

Purchased in condition shown with some tooling for $850 including delivery by seller to my garage "across town" (distance of 70 miles, this being Los Angeles). Seller had been using it in his shop (perhaps several times a week) but was downsizing, so listed it for sale on Craigslist. Motor is housed in the cast iron pedestal, which keeps the shop space required to a minimum (important to me since the lathe's location is along the driver's side wall of my garage). Catalog number is 8187Y, indicating this is a 10-inch "Toolroom" precision lathe, and it features the large diameter spindle bore. There is a label marked "LEE MACHINERY CO. / MACHINE TOOLS / DETROIT, MICH." (the South Bend dealer that originally sold the lathe in 1940, to the Detroit Lubricator Company as buyer). While I have no immediate plans to do a teardown/restoration, I think the job Shane Whitlock did on his Heavy 10 (shown elsewhere within this web site's photo index) is absolutely gorgeous -- beautiful choice of colors in my opinion (wow !-).

Photo 1:

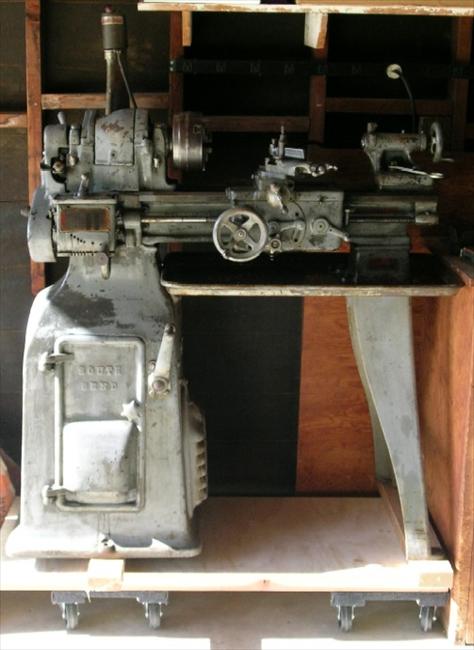

Comments: In as-received condition, wheeled against front of left wall of 2-car garage.
Source:

Direct Link
IMG Code

Photo 2:

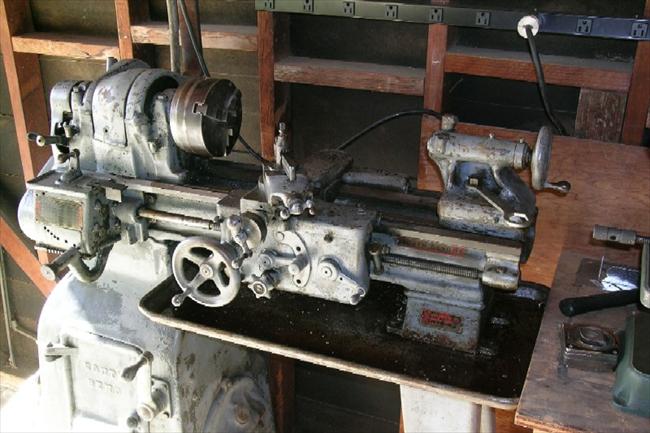

Comments: Temporarily mounted on wooden platform and dollies, until vinyl wallboard was added to garage wall behind.
Source:

Direct Link
IMG Code

Photo 3:

Comments: Close-up of right end of lathe bed, with non-original thread chasing dial on right side of carriage.
Source:

Direct Link
IMG Code

Photo 4:

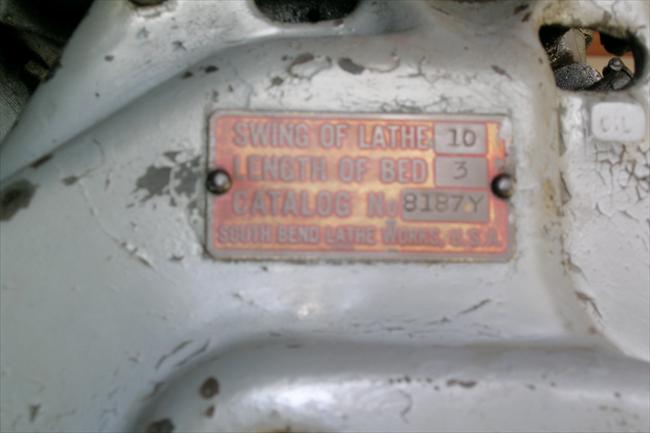

Comments: Model number nameplate
Source:

Direct Link
IMG Code

Photo 5:

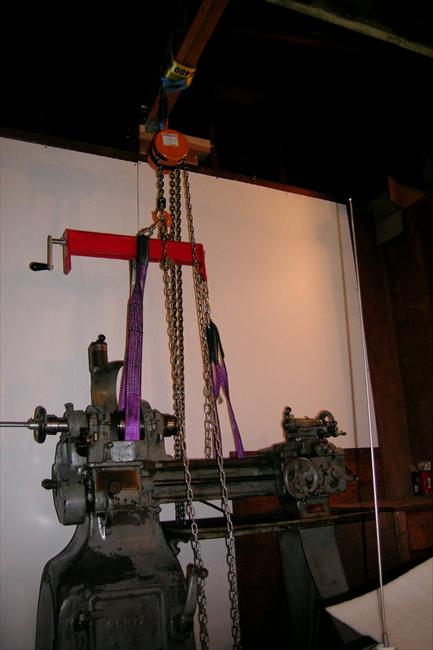

Comments: After vinyl wall-board installed, this 1-ton hoist setup was used to lift lathe off wooden platform and dollies
Source:

Direct Link
IMG Code

Photo 6:

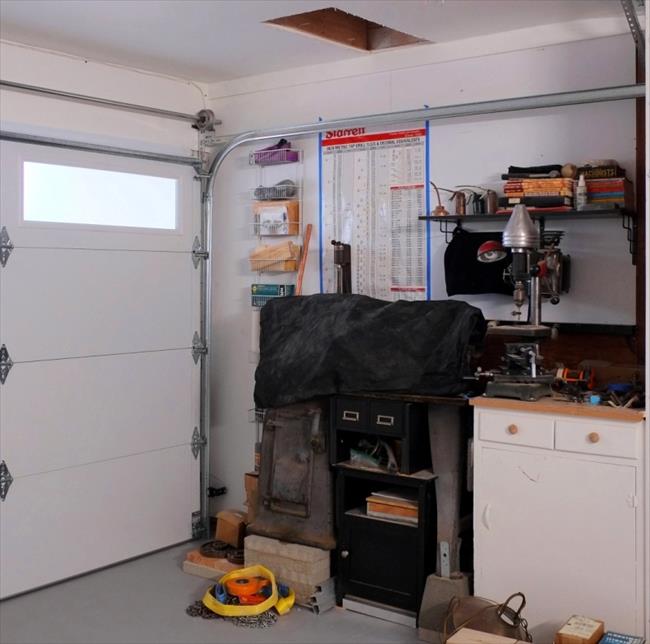

Comments: Lathe area of garage after a major house remodel in 2015-16 (new garage door, new drywall garage ceiling and paint throughout garage). Note that following 2011 crane lift in photo #5, lathe was set back down on a 10-inch tall stack of cement blocks.
