Photo Index - South Bend Lathe Works - 13" Metal Lathe

Machinery Photo Index

Manufactured/Badged by:
South Bend Lathe Works
South Bend, IN

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	13"x40"
Submitted By:	Matt Tebo

Machine Specifications
Description/Model:	13" Metal Lathe
Date of Manufacturer:	Sept 14, 1929
Serial Number:
Last Updated	3/10/2019 2:46:13 PM

Comments:

I bought this machine off craigslist a few years ago from a seller in CT. It appears to have been a single owner machine and a machinist had it in his household shop. He bought it new according to his family. It has a leather belt overhead drive and is powered by a 3/4 hp 3 phase motor. Everything on this machine is original, best I can tell. I have 2ea 3 jaw chucks, a 4 jaw chuck, a face plate, lathe dogs, tool bit holders, and many other small accessories for it. Works very well, runs perfectly smooth, quick change gear box. Came with a static phase converter, I disconnected it, and run it off my rotary phase converter. I'd like to get a taper attachment and a steady rest for it, maybe someday. Not real high on my priority list right now though. Has an 1-7/8" x 8 threaded spindle and takes 2A collets.

Photo 1:

Comments: Couple friends helping me unload it
Source: me

Direct Link
IMG Code

Photo 2:

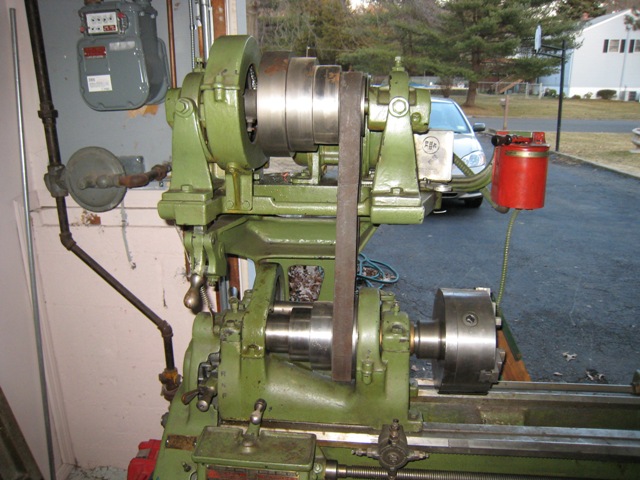

Comments: Headstock/drive area
Source: me

Direct Link
IMG Code

Photo 3:

Comments: Front view with accessory cart below
Source: me

Direct Link
IMG Code

Photo 4:

Comments: Back side of machine
Source: me

Direct Link
IMG Code

Photo 5:

Comments: In the shop
Source: me

Direct Link
IMG Code

Photo 6:

Comments: Original manual/parts list
Source: me

Direct Link
IMG Code
