Photo Index - South Bend Lathe Works - Tool Post External Grinder, Unit Code: ELG105NH

Machinery Photo Index

Manufactured/Badged by:
South Bend Lathe Works
South Bend, IN

True Manufacturer:
General Electric Co., Schenectady, NY

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Other
Machine Size:	4", 1/4hp
Submitted By:	Dwight Flach

Machine Specifications
Description/Model:	Tool Post External Grinder, Unit Code: ELG105NH
Date of Manufacturer:	unknown
Serial Number:	N/A
Last Updated	12/30/2014 12:17:07 PM

Comments:

This South Bend OD "external" tool post grinder was in sad shape when I bought it and was damaged in shipment. But, because it's a fairly unique grinder I was committed to restoring and using it on my 1936 South Bend lathe. I was able to buy NOS motor mount castings, bearings and belt. I disassembled it down to individual parts, cleaned, repaired wiring, painted and reassembled it. (SOLD)

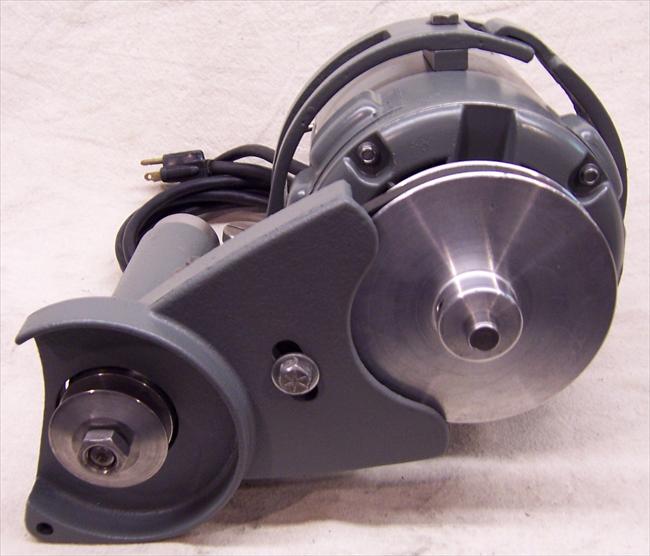

Photo 1:

Comments: Restored to a bit better than it was.
Source: self

Direct Link
IMG Code

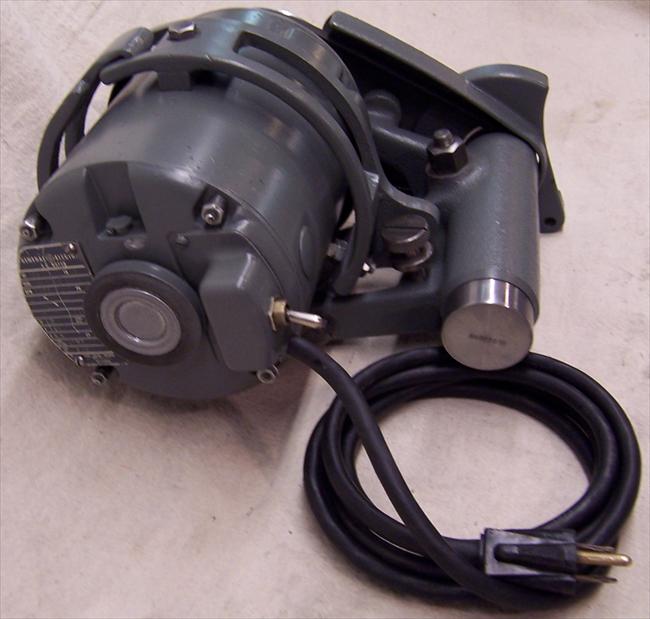

Photo 2:

Comments: GE motor tag. SB Unit Code stamp ELG105NH on the end cap of spindle bearing housing.
Source: self

Direct Link
IMG Code

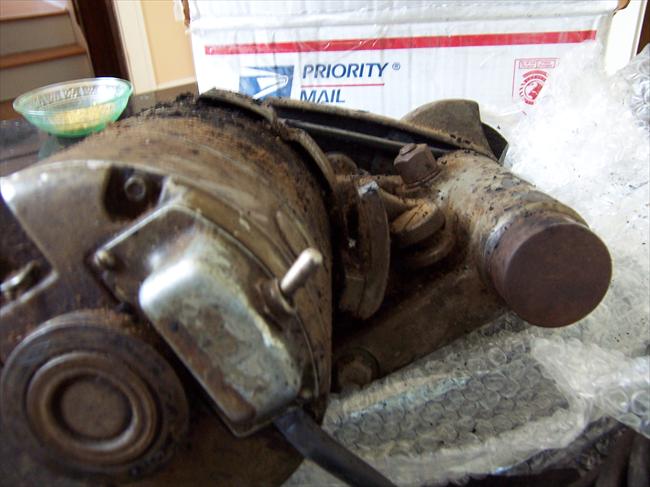

Photo 3:

Comments: This is how it looked when it arrived.
Source: self

Direct Link
IMG Code

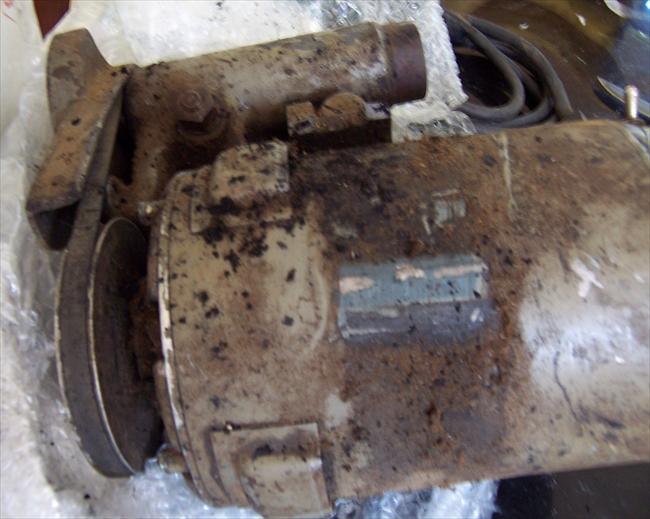

Photo 4:

Comments: Another view of the purchased condition.
Source: self

Direct Link
IMG Code

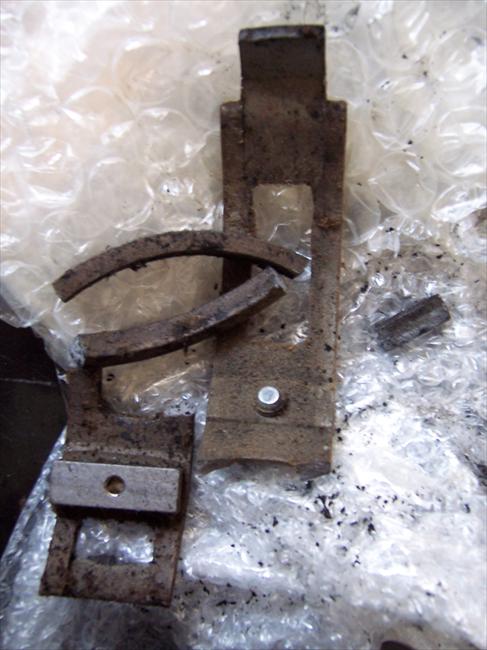

Photo 5:

Comments: Two cast motor mounts broken into 7 pieces.
Source:

Direct Link
IMG Code

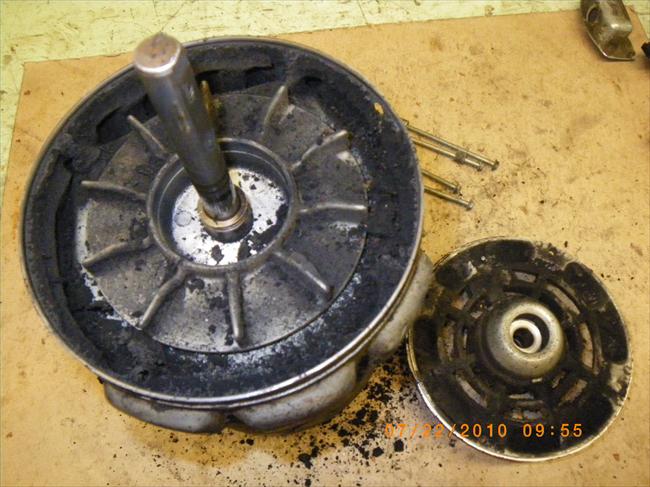

Photo 6:

Comments: The motor was a tad filthy inside as well from decades of use.
