Photo Index - H. B. Smith Machine Co. - Single drum open bed sander

Machinery Photo Index

Manufactured/Badged by:
H. B. Smith Machine Co.
Lowell, MA; Smithville, NJ

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Sander
Machine Size:	54"
Submitted By:	Stuart Kern

Machine Specifications
Description/Model:	Single drum open bed sander
Date of Manufacturer:	unknown
Serial Number:
Last Updated	1/4/2004 11:55:04 PM

Comments:

This is a single-drum open-bed sander. The images were in some sales literature from the H.B. Smith Company. This model may have been a special order, as there is no further information about a model name or number in the records of machines sold.

The mechanism matches that found on the company's standard line of sanders.The drum is about 10" in diameter and weighs about 1700 pounds. It oscillates via a worm gear in the bullet-shaped housing on the left. There is height adjustment via the wheel, and at about 45 o'clock is a control to lock out the oscillation. The motor is attached directly to the drum on the right, and is probably 7.5 or 10 hp

Photo 1:

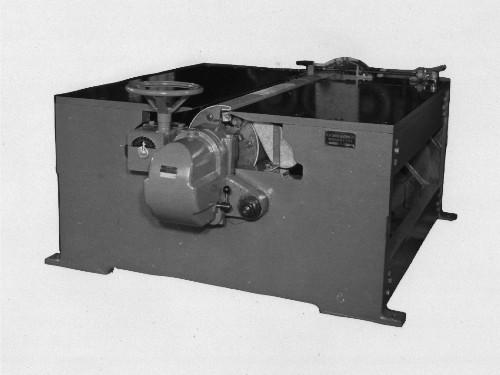

Comments: Single-ddrum open-bed sander
Source: H.B. Smith sales literature

Direct Link
IMG Code

Photo 2:

Comments: Single-drum open-bed sander, in action
