Photo Index - Sears | Craftsman - 109.66220 Neoprene Drive Roller-Wet Wheel Grinder

Machinery Photo Index

Manufactured/Badged by:
Sears | Craftsman
Chicago, IL

True Manufacturer:
Double A Products Co., Ann Arbor, MI; Manchester, MI

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Grinder, Bench
Machine Size:	10" x 1½"
Submitted By:	Brian Kachadurian

Machine Specifications
Description/Model:	109.66220 Neoprene Drive Roller-Wet Wheel Grinder
Date of Manufacturer:	1960 Est.
Serial Number:	none
Last Updated	3/1/2017 11:37:05 AM

Comments:

>>MACHINE<<
Sears Craftsman/Double A Products vertical wet wheel grinder.
Spring loaded Neoprene drive roller on wheel surface.
Machine pulley-2½", 1750rpm motor pulley-2".
Craftsman "crown" style logo decal.

>>HISTORY<<
Local ebay purchase, July 2010.
Original owners manual was included (posted to the publication section).

UPDATE-July 2011: Mounted the grinder on a ho-made stand that came with my Atlas scroll saw to test the motor configuration.
The motor shaft is co-linear with the drive roller contacting the wheel and the pivot pin axis.
This configuration maintains fairly constant belt tension without the weight of the motor hanging on the drive roller bronze bearings.
It also allows me to swing the roller away from the grinding wheel for lubrication and inspection.
And it keeps the motor away from the water. Note the switch location in photo below.
Pipe fittings (1/8" NPT) and a ball valve were added to the drain.

Photo 1:

Comments: Front view
Source: Nikon Coolpix w/o flash

Direct Link
IMG Code

Photo 2:

Comments: Rear view
Source: Nikon Coolpix w/o flash

Direct Link
IMG Code

Photo 3:

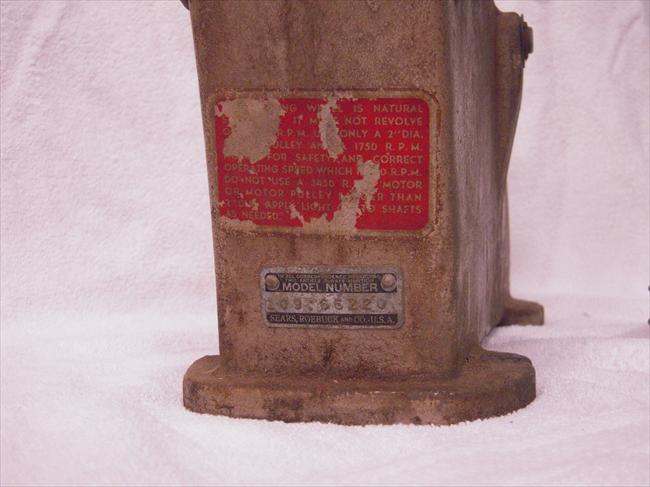

Comments: Tag area
