Photo Index - J. A. Fay & Egan Co. - Single End Tenoner

Machinery Photo Index

Manufactured/Badged by:
J. A. Fay & Egan Co.
Cincinnati, OH.

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Tenoning Machine
Machine Size:	Heavy Duty
Submitted By:	Joe Lutz

Machine Specifications
Description/Model:	Single End Tenoner
Date of Manufacturer:	circa. 1905
Serial Number:	85812 (View SN Registry Entry)
Last Updated	5/13/2010 6:05:24 PM

Comments:

I dug this machine out of a burned down lumber yard. It was a "line shaft" driven unit but I have installed a dedicated 3hp motor Surprisingly, the "babbitt" bearings were not harmed in the intense heat of the fire. It had a cut off saw but I opted not to use that feature. I've not done much in the way of restoration but I sure have made a lot of tenons with it. This machine will cut a 16"w X 6"T X 7"L tenon.

Photo 1:

Comments: Single end tenoner, yeah, I know its dirty but, Hey, this is a working machine!!!!
Source:

Direct Link
IMG Code

Photo 2:

Comments: Cutter heads and a view of the babbitt bearings
Source:

Direct Link
IMG Code

Photo 3:

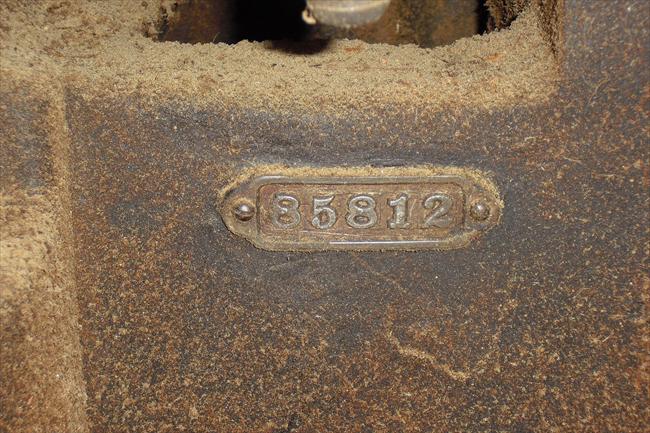

Comments: Serial number
Source:

Direct Link
IMG Code

Photo 4:

Comments: Oak sample, notice how the tenon is tapered!
