Photo Index - Delta Specialty/Delta Mfg. Co./Delta-Rockwell/Rockwell Intl. - Backstand Idler

Machinery Photo Index

Manufactured/Badged by:
Delta Specialty/Delta Mfg. Co./Delta-Rockwell/Rockwell Intl.
Milwaukee, WI; Jackson, TN; Tupelo, MS

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Other
Machine Size:	4"
Submitted By:	Bill Nance

Machine Specifications
Description/Model:	Backstand Idler
Date of Manufacturer:	1960s?
Serial Number:
Last Updated	2/2/2010 11:58:33 PM

Comments:

This backstand idler was used as the idler pulley assembly in the Acme National line of 2C edge sanders made by R.A. Ness & Co. While restoring a 2C sander for my shop, I took a bunch of photos of this assembly in particular because it's the critical component in that machine. But since it apparently is a device in its own right that R.A. Ness simply bought from Delta for use on the sander, I figured some folks may be interested in it standalone.

Photo 1:

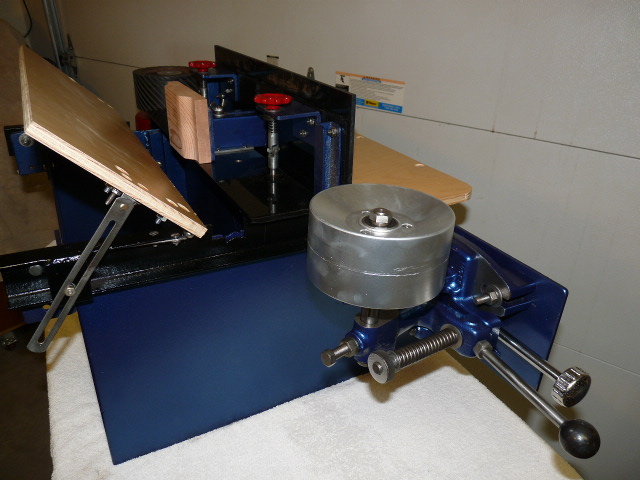

Comments: pulley side view
Source: my camera, my shop

Direct Link
IMG Code

Photo 2:

Comments: view behind pulley
Source:

Direct Link
IMG Code

Photo 3:

Comments: view opposite pulley
Source:

Direct Link
IMG Code

Photo 4:

Comments: main subassembly intersection
Source:

Direct Link
IMG Code

Photo 5:

Comments: installed on Acme 2C sander
Source:

Direct Link
IMG Code

Photo 6:

Comments: view prior to restoration
Source:

Direct Link
IMG Code
