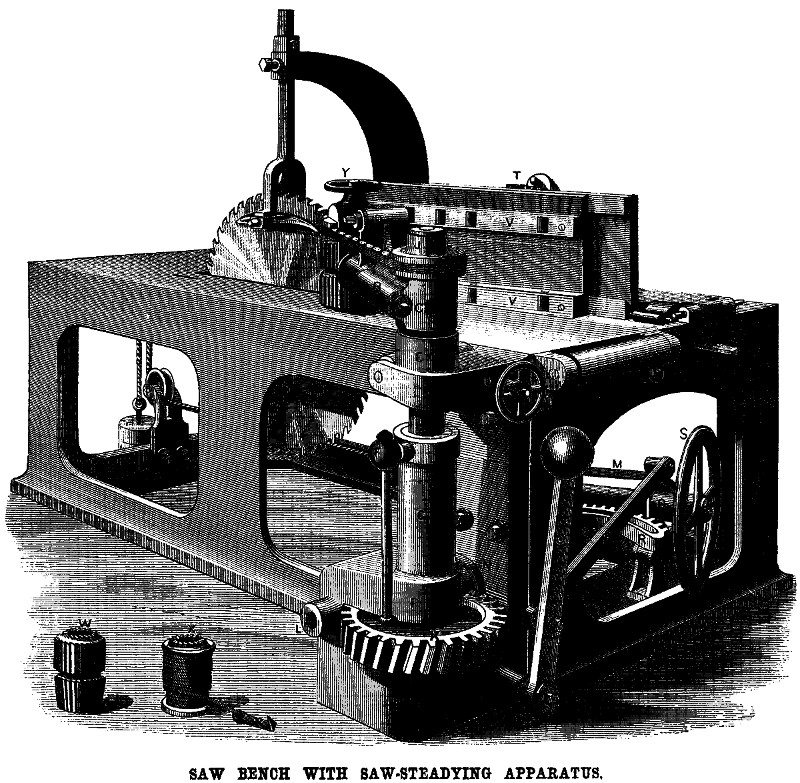

We give herewith a perspective view of a circular saw bench made by Messrs. Oliver & Co. (Limited), of Chesterfield, England, which we take from Engineering. The chief features in this machine are that it is fitted with Mr. John Casson's patent feed gear and apparatus for steadying the saws. This feeding arrangement has now been in use some years, and has been fitted to a very large number of circular saw benches. This being the case, and the arrangement being very clearly shown by our engraving, it will be unnecessary for us to describe it in detail here.
The saw-steadying apparatus, with which the saw bench we illustrate is fitted, is a novel arrangement, recently patented by Mr. Casson; in the present case it is applied to two saws.
The steadying arrangement consists of accurately fitted sliding jaws mounted on the arms of a forked support, so that they can be moved and adjusted only by fine threaded screws, the jaws having their surfaces next the saws, accurately parallel with the plane of the collar of the saw spindle; these jaws, A, are fixed when the adjusting screws are at rest, and they are faced with strips of greenheart or other suitable timber, secured by countersunk screw bolts, these faces forming a perfectly true guide for the saw blades.
For a single saw the guides just described would suffice; but for two or more saws the outside guides must be supplemented by others between the saw blades.
It will be noticed that the support, F, carrying the guiding jaws, has a square stem sliding through the head of a suitable standard, and it can be readily fixed at any desired height by means of the set screw.
The arrangement we have been describing is well carried out, and there can be no doubt that it will do good service, and enable thin saws to be efficiently used with a heavy feed. We have received very satisfactory reports of its performance. |
|
|
